Reports in CloudCheckr FinanceManager

Reports play a key part in CloudCheckr FinanceManager. A report determines which column(s) in the normalised data created by Transcript during the Transform step should be used to group the charges.

Once a report has been created, it is necessary to prepare the day(s) that the report is required to be run against.

Once a report has been prepared for any given day (or range of days) it is not necessary to repeat the preparation process unless a rate has been updated, or the Transform step has been re-run for any days in the range of dates for which the report was previously prepared.

Create Reports

Once data has been processed by Transcript and loaded into the system, one or more reports are created in order to present the data however you wish. The columns specified in the report will determine the chargeable entities (referred to as accounts_).

The report preparation process will update the accounts list in CloudCheckr FinanceManager such that reports can be subsequently executed against those accounts.

A report is hierarchical in that the first column is termed level 1 and each subsequent column increases the level by 1. For example a hierarchy of Reseller, Customer, Resource Group will group the charges by those columns.

Reports can be executed against any of these levels. Using the previous, a report run at level 1 will show the total charge leveraged against each unique Reseller, a report run at level 2 will show the charges associated with each unique combination of Reseller and Customer and so on.

Before you can create a Report, you need to understand what data you have loaded into the system. Specifically, it is important to understand on which columns you want to report. Once you have that worked out, you can create a Report as follows:

  1. Go to ‘Data Pipelines > Reports
  2. Click ‘Add Report

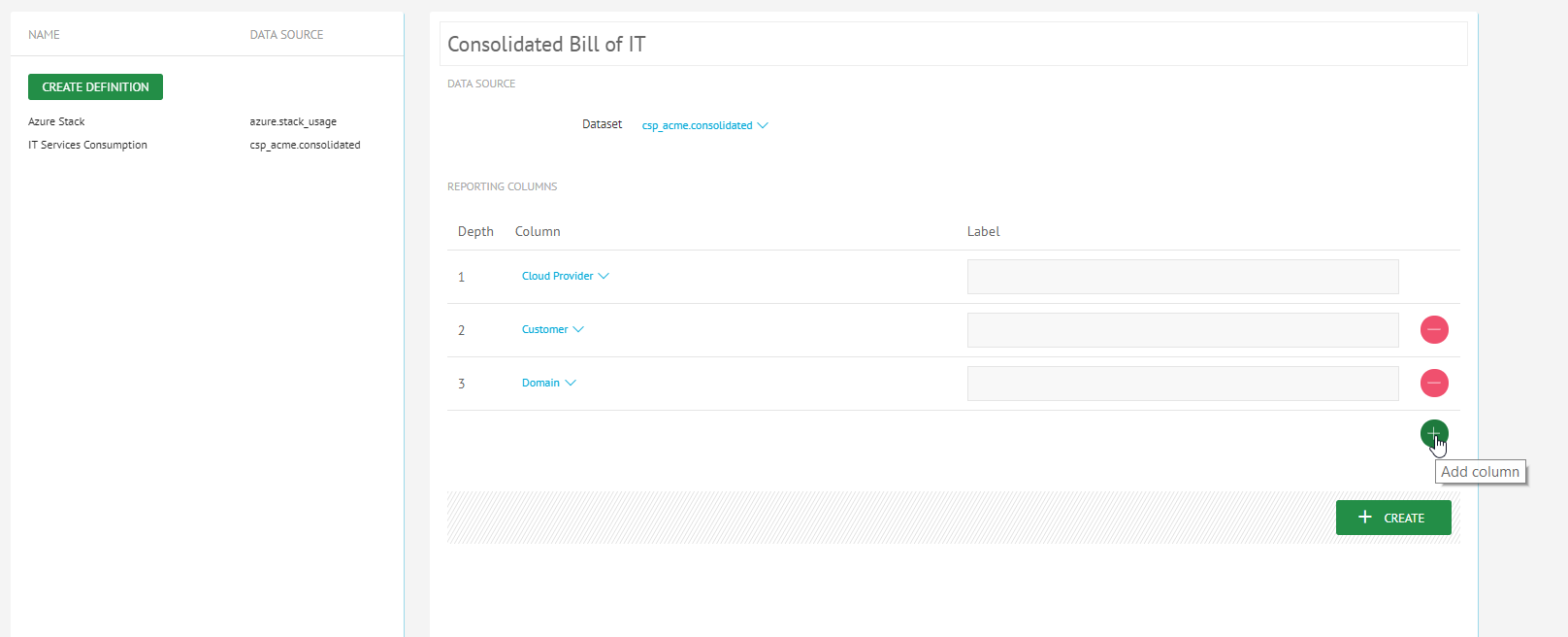

  3. In the new window on the right side of the screen, provide a meaningful name for your report. Keep in mind that this name will also be displayed to your customers / end users that will have access to (parts of) this Report
  4. Now you can select up to 5 level deep your reporting columns. Typically these should relate to “Departments”, “Business Units” etc in Enterprise organizations. Or “Customers”, “Resellers” etc in Service Provider use cases.
  5. Once you’ve selected all columns that make up this Report, click “Insert” to create it.

Prepare Reports

Once you’ve created a Report, it is required to prepare it. The preparation of a report populates the accounts table, and also optimizes the performance when running your reports.

To prepare a Report, follow these steps:

  1. Go to ‘Data Pipelines > Reports
  2. Click the Report name that you want to prepare
  3. The list on the right shows the number of Days that have consumption Data available. When the Integrity for a single day is shown as Unknown, it means that particular day(s) requires preparation. When creating a new Report, this needs to be initiated manually for the entire date range as shown in the above example.
  4. Click the ‘Prepare Report’ button

It might take a few seconds up to several minutes before the preparation of your Report has completed. This depends on the amount of Consolidated Usage Records, and the number of days you’ll have to prepare your report for. While the preparation of your report is running in the background, you may continue to use the system. However, until the preparation of the report has completed, running a report might yield partially complete data.
